Commercial Doors Standard Lift

Short Description:

The Advanced Series ThermoLock™ Model 810 is the strongest and most thermally efficient doors in the Bestar product line-up. The 3” thickness of polyurethane insulation and thermal break rubber makes those doors heat and cold resistant, while the tongue-and-groove joint helps seal out wind, rain and snow. Manufactured with hot-dipped galvanized coating and 3 stage painting steel, it is designed to withstand tough weather conditions and is the preferred choice for large openings where thermal performance and durability are essential.


  • Thermal Efficiency: R Value=26.10
  • Panel Construction: Steel+Polyurethane Insulation+Steel
  • Joint Design: Tongue and groove section with full thermal break

Product Detail

Product Tags

The Advanced Series ThermoLock™ Model 810 is the strongest and most thermally efficient doors in the Bestar product line-up. The 3” thickness of polyurethane insulation and thermal break rubber makes those doors heat and cold resistant, while the tongue-and-groove joint helps seal out wind, rain and snow. Manufactured with hot-dipped galvanized coating and 3 stage painting steel, it is designed to withstand tough weather conditions and is the preferred choice for large openings where thermal performance and durability are essential.

Technical Date

No.

Item

Features & Benefits

1

Product

Commercial Doors

2

R-Value

26.10

3

Insulation

CFC free Polyurethane with density 55kg/m³

4

Panel Construction

Steel+Polyurethane+Steel

5

Panel Thickness

75mm (3”)

6

Panel Height

530mm (21”), 610mm (24”)

7

Panel Design

4 Ribbed with Woodgrain Texture

8

Steel Thickness

0.45mm (26gauge) interior & exterior

9

Coating and Painting

Hot-dipped galvanized coating, polyester primer and topcoat painting

10

Joint Design

Tongue and groove section with full thermal Break

11

Color

White

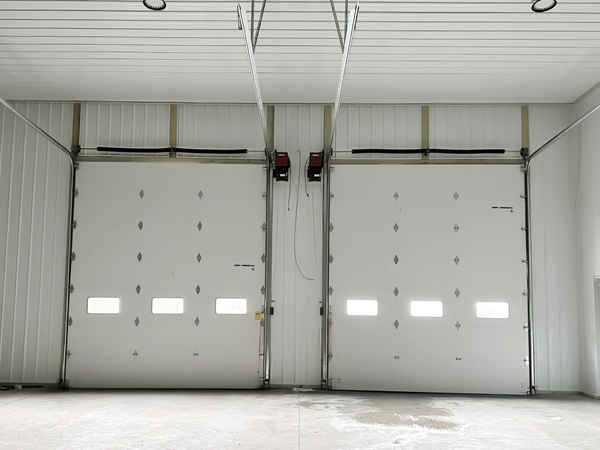

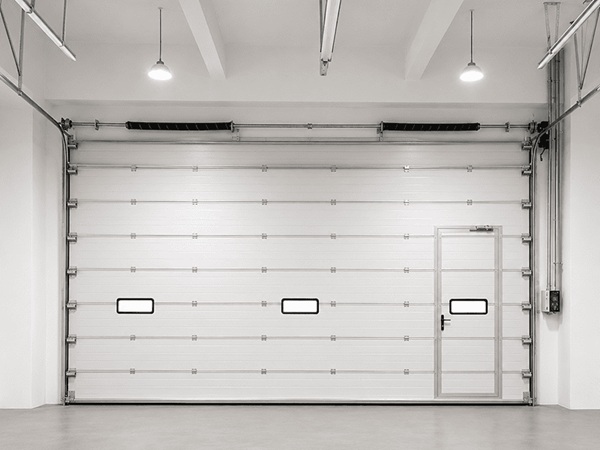

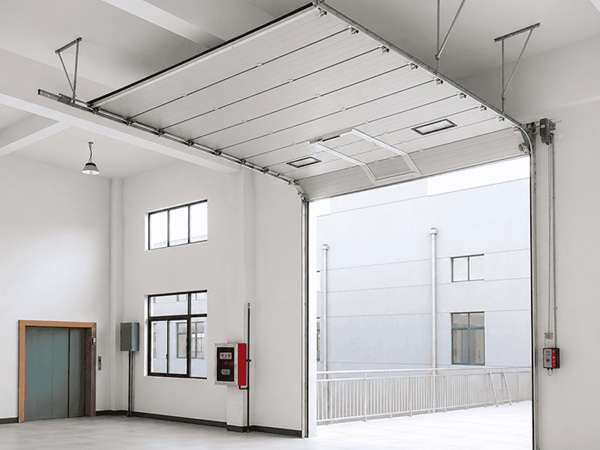

Standard Lift Commercial Doors

10-Commercial-Sectional-Overhead-Garage-Door-Standard-Lift

Commercial Doors Lift Type

10-Sectional-Overhead-Door-Commercial-Garage-Door
