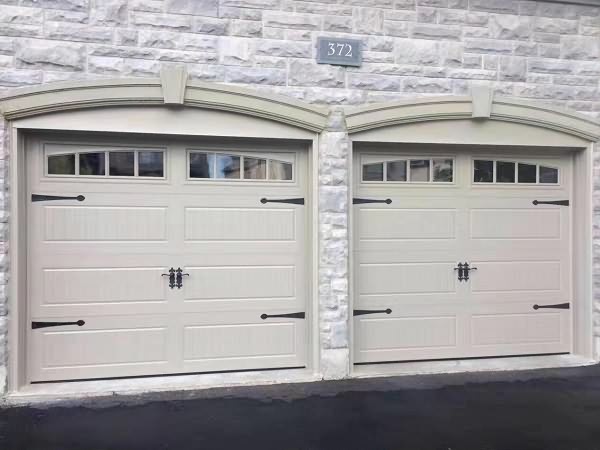

Model 5000 Long Carriage Style Garage Doors

Short Description:

The ThermoLock™ Model 5000 Carriage Style Garage Doors, manufactured with 3 layer construction (steel+insulation+steel), provide exceptional strength, energy efficiency, rust resistance and noise reduction. The 2” thickness of polyurethane insulation and thermal break rubber makes those doors heat and cold resistant, while the tongue-and-groove joint helps seal out wind, rain and snow. Available in short and long panels with multiple window options, this series garage doors will definitely enhance the beauty of your house.

  • Thermal Efficiency: R Value=17.10
  • Panel Construction: Steel+Polyurethane Insulation+Steel
  • Joint Design: Tongue and groove section with full thermal Break

The ThermoLock™ Model 5000 Carriage Style Garage Doors, manufactured with 3 layer construction (steel+insulation+steel), provide exceptional strength, energy efficiency, rust resistance and noise reduction. The 2” thickness of polyurethane insulation and thermal break rubber makes those doors heat and cold resistant, while the tongue-and-groove joint helps seal out wind, rain and snow. Available in short and long panels with multiple window options, this series garage doors will definitely enhance the beauty of your house.

Technical Data

No.

Item

Features & Benefits

1

Product

ThermoLock™ Model 5000 Carriage Style Garage Doors

2

R-Value

17.10

3

Insulation

CFC free Polyurethane with density 55kg/m³

4

Panel Construction

Steel+Polyurethane+Steel

5

Panel Thickness

50mm (2”)

6

Panel Height

460mm (18”), 530mm (21”)

7

Panel Design

Cassette, Carriage, Flush, Ribbed, with Woodgrain Texture

8

Steel Thickness

0.37mm (28gauge) or 0.45mm (26gauge)

9

Coating and Painting

Hot-dipped galvanized coating, polyester primer and topcoat painting

10

Joint Design

Tongue and groove section with full thermal Break

11

Color

White, Almond, Sandstone, Charcoal, Brown, Dark Brown, Black

USA Standard Garage Doors

Garage Doors Design

01-bestar-garage-doors-panel-section

Quality Inspection

01-bestar-garage-doors-quality-control

Garage Doors Packing

01-bestar-garage-doors-packing

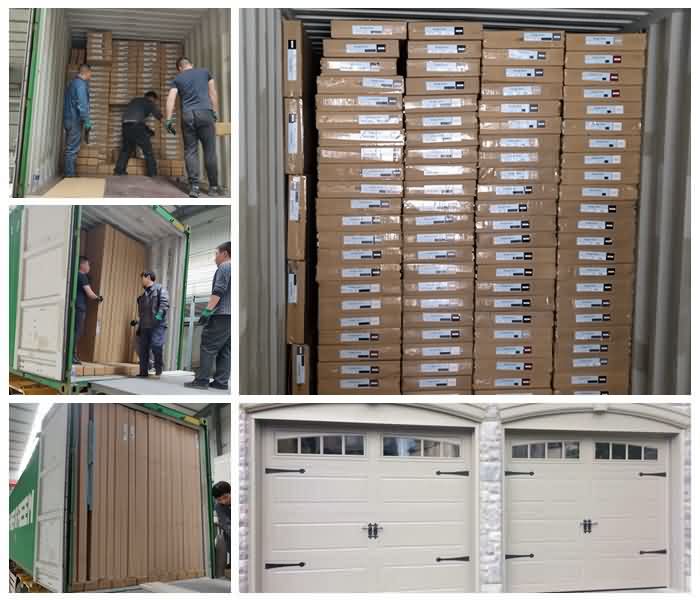

Garage Doors Loading

01-bestar-garage-doors-loading

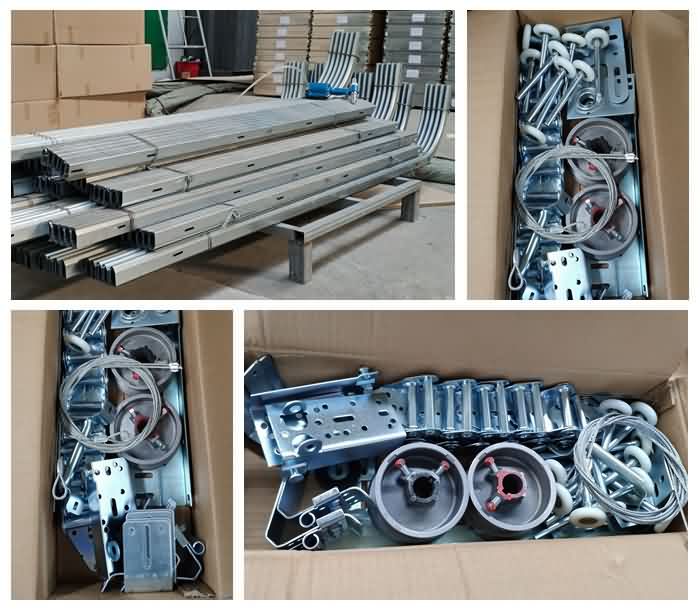

Hardware & Accessories

01-bestar-garage-doors-hardware-accessories

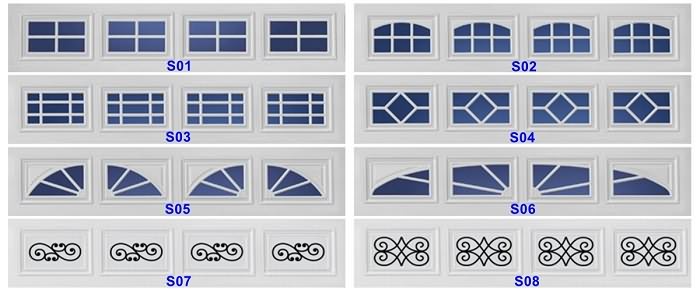

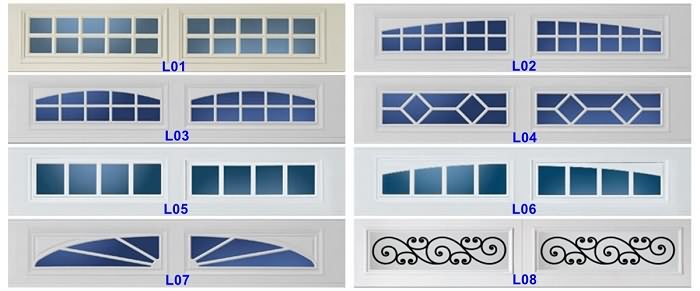

Windows Design

01-bestar-garage-doors-windows

02-bestar-garage-doors-windows
